Multi-point thermal resistance is used to measure the presence of temperature gradient in the production site container or storage tank, it is necessary to measure the temperature of multiple positions at the same time. As a temperature sensor, multi-point thermal resistance is usually connected with multi-channel display regulator, recorder or PLC system to measure and display the temperature of different gradient points.
I. Main technical parameters:
1, electrical outlet: M20* 1.5NPT1/2
2. Thermal response time: < 30S
3, even wire diameter: 3 ф 4 ф 5 ф 6
4. Protection grade: IP65
5, output form: Pt100 signal output 4~20mA output signal
6, temperature range: -200~500℃
7, accuracy grade: A, B
8. Connection form: threaded flange
Second, the characteristics of
1, multi-point measurement, multi-point signal output, respectively display temperature
2, multi-point thermal resistance adopts armored thermal resistance elements, easy to bend
3. Fast thermal response time
4, long service life

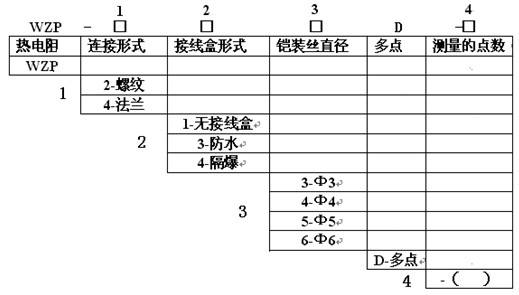

Iii. Product selection

Iv. Instructions for selection

The purchaser shall provide detailed conditions on site

Location requirements for measuring points shall be provided

points

Installation dimensions

Note: 1. The material of multi-point thermal resistance shall be determined according to the measured medium or customer's requirements. 2
