Stainless steel pressure gauge
Description
Y-b series stainless steel pressure gauge adopts direct contact joint and pressure sensing element material, icr18Ni9T, Ocr18Ni12Mo2Ti, SUS316, the structure is fully sealed, with strong ability to resist the corrosion of tested medium and environmental corrosion. Stainless steel pressure gauges are widely used in petroleum, chemical, metallurgy and other industries for corrosive medium suitable for stainless steel components and harsh external corrosive environment. Selection of stainless steel pressure gauge

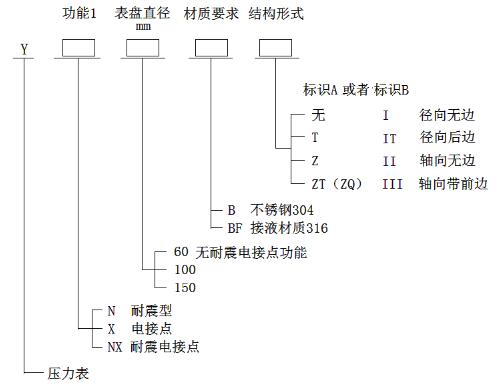

| model | Y-60B | YN-60B | Y-100B | YN-100B | Y-150B | YN-150B |
| Precision grade | 2.5 | 1.6 | ||||
| Measuring range MPA | 0 ~ 0.1; 0.16; 0.25; 0.4; 0.6; 1.0; 1.6; 2.5; 4. 6; 10; 16. 25. 40; 60; 100; - 0.1 ~ 0; 0.1 ~ 0.06; 0.1 ~ 0.15; 0.1 ~ 0.3; 0.1 ~ 0.5; 0.1 ~ 0.9; 0.1 ~ 1.5; 0.1 ~ 2.4 | |||||
| Joint thread | M14X1. 5 z / 4 "(NPT) G1/4" | M20X1. 5 z / 2 (NPT) G1/2 "G3/8" | ||||
| The environment temperature | - 40 ~ 70 ℃ | |||||
| Ambient vibration frequency | No more than 25 hz | |||||
| Ring picture | No more than 1 mm | |||||
(1) Stainless steel pressure gauge is not suitable for the environment with chlorine, nitric acid and oxygen peroxide and other fortifier. (2) Stainless steel pressure gauge shell to spray PTEE polytetrafluoron coating, indicate when ordering. (3) Stainless steel pressure gauge joint thread if special requirements, please specify. (4) all stainless steel pressure gauge is divided into ordinary type and shockproof type. (5) Please state the name, model and upper limit of measurement when ordering
